Debug Complexity: How Assertions Affect Debugging Time

Disclaimer: as usual, the opinions within this article are those of ‘No Bugs’ Bunny, and do not necessarily coincide with the opinions of the translators and editors. Please also keep in mind that translation difficulties from Lapine (like those described in [ Loganberry04 ]) might have prevented an exact translation. In addition, the translator and Overload expressly disclaim all responsibility from any action or inaction resulting from reading this article.

In ‘A Model for Debug Complexity’ [ Ignatchenko13 ], we started to build a mathematical model for estimating debugging efforts, and made some sanity checks of our model, in particular on relations between coupling and debug complexity. In this article, we have extended that model to see the effect of the assertions on debugging time. It should be noted that, as previously, the model should be considered to be very approximate, with several assumptions made about the nature of the code and debugging process (though we’re doing our best to outline these assumptions explicitly). Nonetheless, the relations observed within the results obtained look quite reasonable and interesting, which makes us hope that the model we’re working with represents a reasonable approximation of the real world.

Assumptions

1. In ‘A Model for Debug Complexity’ [II2013], we considered purely linear code. However, it seems that in the context of debugging the same analysis applies to arbitrary code, as long as the execution path is fixed (which is usually the case for deterministic, repeatable debugging); in this case the execution path can be interpreted as linear code for the purposes of analysis. In this article, we’ll use the term ‘linear code’, implying that it is also applicable to any execution path.
2. The linear code consists of (or the equivalent execution path goes through) N lines.
3. In a naive debugging model, the developer goes through the code line by line, and verifies that all the variables are correct. T _singlecheck denotes the time to check a single variable.
4. In the earlier article, we mentioned that in many cases it is possible to use a bisection-like optimization to reduce debugging time very significantly. However, such an optimization requires well-defined interfaces to be able to check the whole state of the program easily, and in such cases individual test cases can be easily built to debug an appropriate program part. For the purposes of this article, we will only consider a chunk of code which cannot easily be split into well-defined portions (in other words, a ‘monolithic’ chunk of code), and will not analyze it using bisection optimization.
5. Previously, it was mentioned that not all variables need to be analyzed due to coupling. For the purposes of this article, we’ll use the term ‘variables to be analyzed’; also we expect that for our analysis of chunks of code which cannot be easily split (see item 4 above), the chances of tight coupling are rather high, so the difference between ‘variables’, ‘variables to be analyzed’, and ‘coupled variables’ is not expected to be significant enough to substantially affect the relations observed within our findings.
6. We assume that the number of variables to be changed grows from the beginning to the end of the code; to simplify modeling we also usually assume that this growth is linear.
7. In the earlier article, an obvious optimization – that after the bug is found, the process of going through the code line by line can be stopped – wasn’t taken into account. However, we feel that it doesn’t substantially change relations observed within our findings, and as taking it into account will complicate the mathematics significantly, we’ll leave such analysis for the future.
8. Our analysis is language-independent. That is, all language-specific effects such as ‘in C/C++ you can easily write an assert such as assert(a=b) which will cause bugs’, are out of scope. Also, we’ll use the term ASSERT for assertions in any programming language.

Introducing ASSERTs

Now assume that there is an ASSERT that catches the bug, defining ‘an ASSERT that catches the bug X ’ as ‘an ASSERT which fails if bug X is present’.

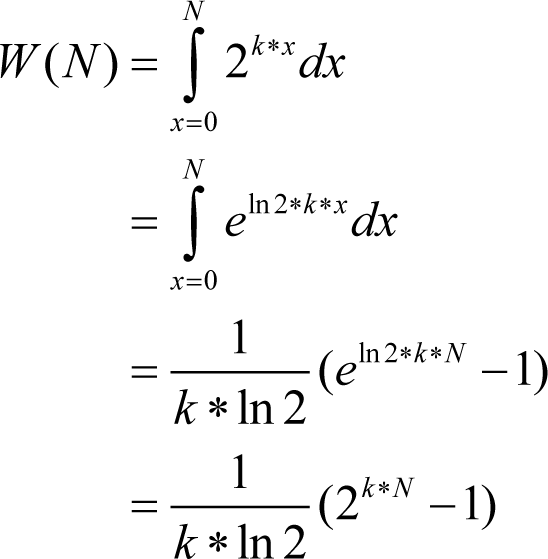

If the ASSERT A is at line x _A , then it remains to debug only the first x _A lines, and the amount of work required will be

It should be pointed out that the ratio of the amount of work without this ASSERT A , compared to that with it, will be

This suggests, in particular, that an ASSERT in the middle of code can save far more than 50% of the work.

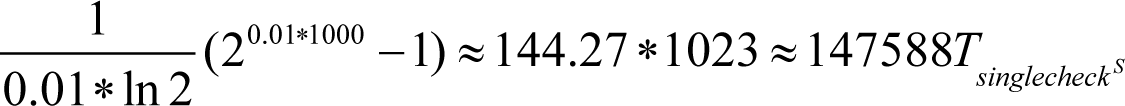

For instance, in a one-thousand line code chunk with 10 variables to be analyzed at the end (that is, N =1000, and k =0.01) the total amount of work without asserts may be of the order of

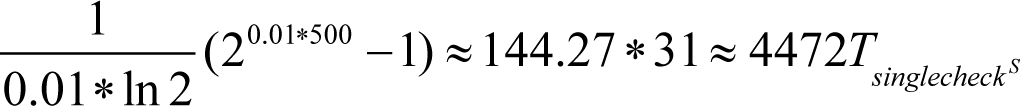

And with the ASSERT in the middle of the code this value will become

which is 33 times less!

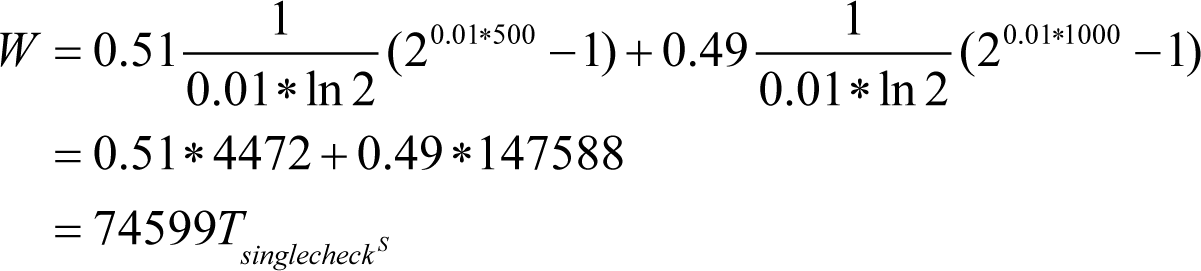

In practice, an ASSERT may catch a bug with some probability: one may assume that checking a certain condition in the ASSERT will catch the bug, but indeed, may not. Let’s say that an ASSERT has a probability p _A of catching a bug. Then, the expectation of the amount of work may be estimated as a sum of

where the first term is for the case when the ASSERT is successful, and the second term is for the opposite case.

Quality of ASSERTs

Clearly, the greater the probability of an ASSERT catching the bug, the less debugging work has to be done. But is it true that an ASSERT with probability of catching a bug of, say, 0.3 is only twice as bad than that with probability 0.6? If two ASSERT s are independent and have a probability of catching a bug of 0.3, then the probability that the bug won’t be caught by either of them is (1-0.3) ² = 0.49. Let’s use the above example, and assume that all ASSERT s sit in the middle of the code. Substituting, we may get for the ASSERT with probability 0.6:

And for two ASSERT s with probability 0.3 each:

Let’s define an ‘assert which has a high probability of catching probable bugs’ as a ‘high-quality assert’. Unfortunately, there seems to be no simple recipe on ‘how to write high-quality asserts’, though one consideration may potentially help: if an assert aims to catch one of the most common bugs it has quite a good chance of being a ‘high-quality assert’. In particular, ‘No Bugs’ has observed that, when coding in C/C++, simple assertions, say of an array index being within the array boundaries, are extremely rewarding in terms of helping to reduce debugging times – simply because it is very easy to go beyond allocated memory, and it is very difficult to find the exact place where this has happened. Another potential suggestion is related to using asserts as a way of (enforced at runtime) documenting code [Wikipedia]; such ‘code documenting’ asserts (in the experience of ‘No Bugs’) tend to catch more subtle logical bugs.

Multiple bugs

In general, ASSERT A may catch more than a single bug, and we may talk about the probability p _A ^B of the ASSERT A catching a specific bug B residing in the code. Thus, if there are n bugs, then ASSERT A may have probabilities p _A ^Bi of catching bug Bi for each i from 1 to n . With this assumption, for instance, the probability that ASSERT A is useless is the product:

We may call this product the value ineffectiveness of an ASSERT . It is clear to see that if, with time, some bugs are caught and therefore the number of bugs decreases, the value ineffectiveness of ASSERT s tend to increase. Let’s denote it by IL . The complimentary probability, 1- IL , gives a chance that the ASSERT catches at least one bug.

Multiple bugs – multiple ASSERTs

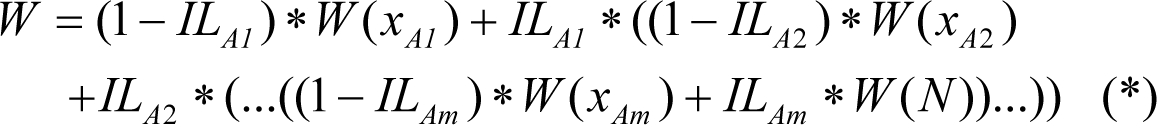

In a real program, there is often (alas!) more than a single bug, and it is (luckily!) possible to place more than a single ASSERT . Then the amount of work to catch a single bug in a code with n bugs and m ASSERT s placed at lines x _i , respectively, may be estimated (assuming for simplicity that ASSERT s are enumerated in the order of lines they are placed at) as:

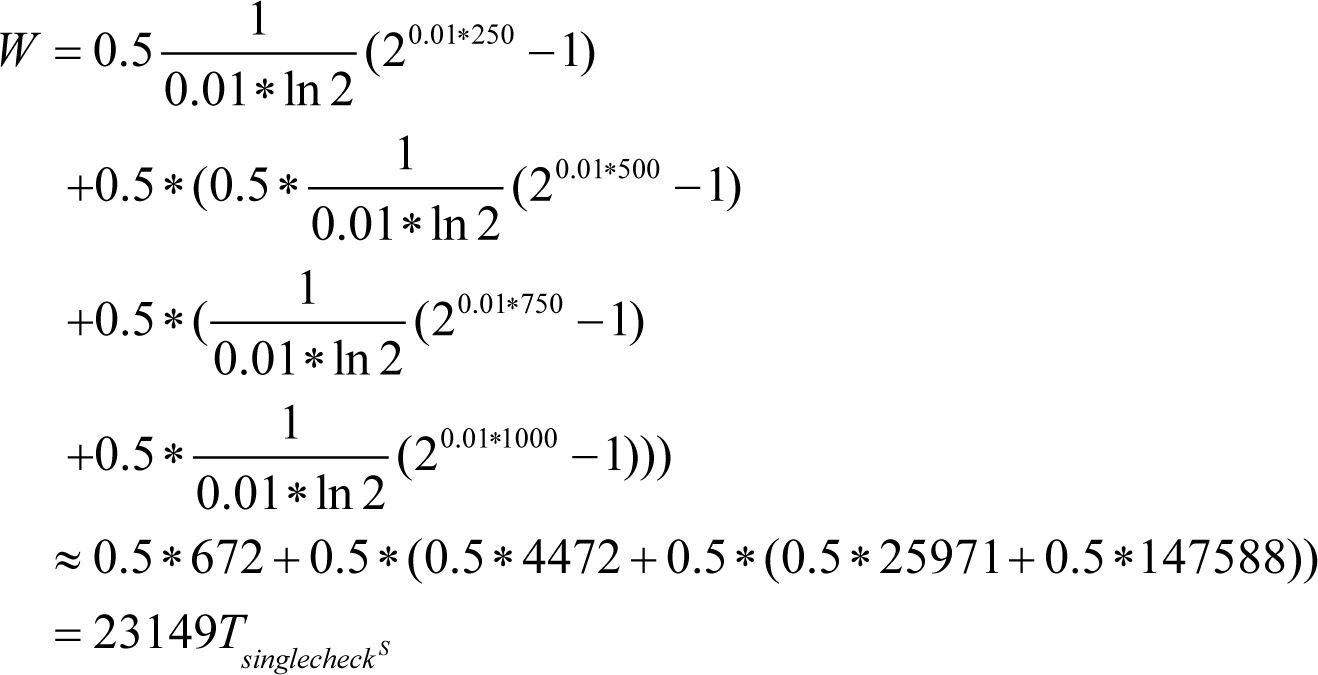

For instance, in the above example with three ASSERT s at lines 250, 500, and 750, respectively, and values of ineffectiveness of 0.5 each, to catch a single bug the amount of work will be:

which is more than 6 times less than without any ASSERT s.

To illustrate the effect of using asserts from slightly different point of view, for simplicity we may make another assumption that for any ASSERT the probability p of catching any specific bug is the same:

Then in the above notation, the value of ineffectiveness IL may be written as a function of number of remaining k bugs:

Then, using (*) above, we may calculate the work for finding a bug when only k bugs remain:

Adding up the amounts of work W ( k ) for each k from n to 1 will give us a total expected amount of work to debug all n bugs:

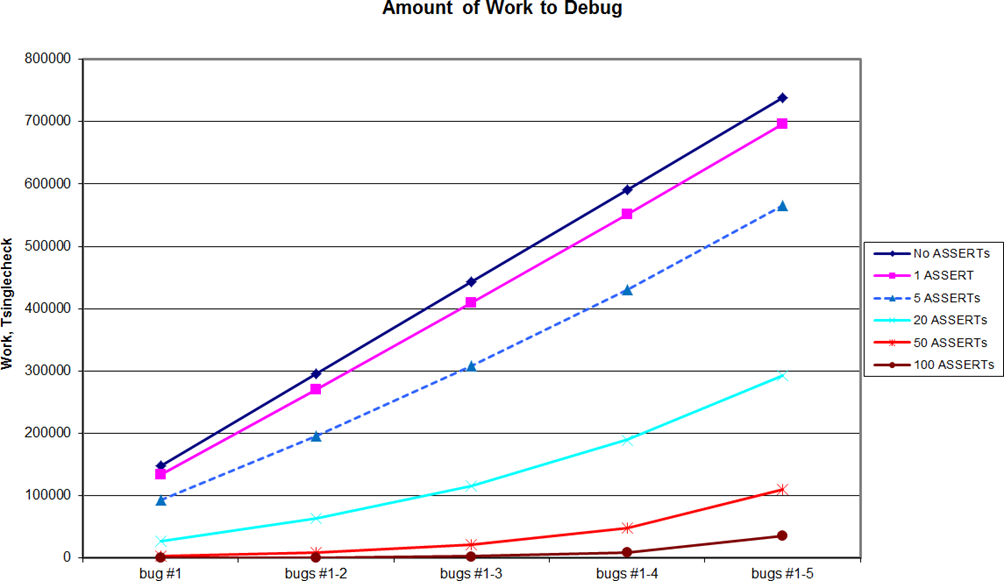

To get some taste of what these formulae mean, we have calculated a few samples based on the example that we considered above: a chunk of 1000 lines of ‘monolithic’ code, a linear increase of the number of variables to be analyzed along the code from 1 to 10, 5 bugs, and certain number of ASSERT s with a bit more realistic probability of catching a bug of 0.02; the resulting graph of ‘cumulative amount of work as debug progresses through finding bugs’ is shown on Figure 1.

Figure 1

In particular, this graph illustrates that, as we have mentioned above, the ASSERT effectiveness tends to ‘degrade’ as debugging goes ahead. This finding is consistent with what we observe in practice, where catching ‘the last bug’ will usually require far more work than the first one. One way that is derived from practical experience, and which follows from the above reasoning, is to add ASSERT s… or to follow a good habit of using them in any place where conditions may be in doubt whilst coding.

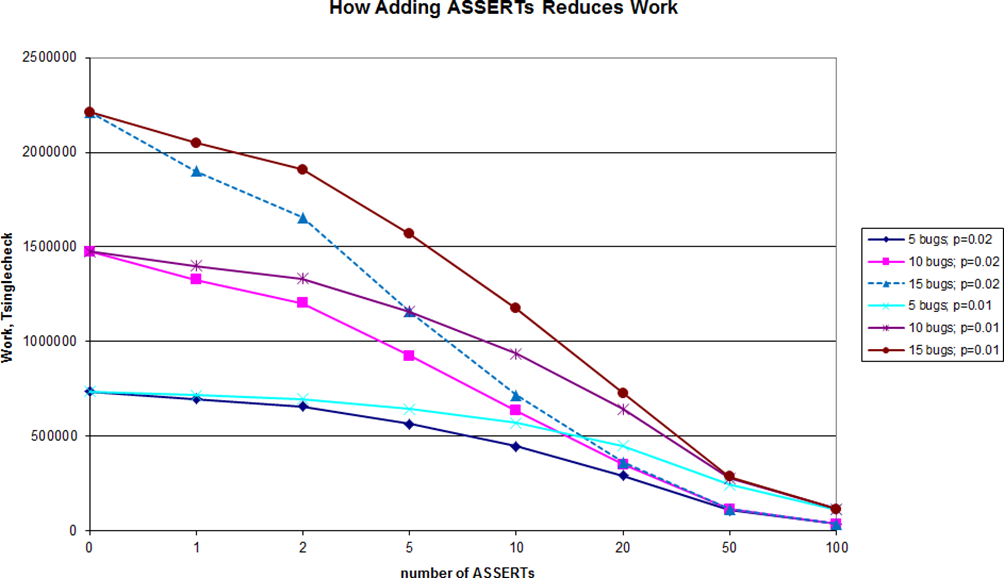

Another example of calculation is shown on Figure 2 and illustrates how increasing the number of ASSERT s helps to reduce amount of work necessary to debug the program (note that for presentation purposes, the number of ASSERT s on the graph is near-logarithmic).

Figure 2

Note that while the nature of our analysis is very approximate, the relations observed within our results are expected to be reasonably close to reality; that is, while real-world debugging time can easily differ from the results calculated using our formulae, reduction of the real-world debugging time as number of ASSERT s increases, should be reasonably close to those calculated and shown on the graphs.

Conclusion

Good is better than bad,Happy is better than sad,My advice is just be nice,Good is better than bad

~ Pink Dinosaur from Garfield and Friends

Within the debug complexity model previously introduced [II2013], we have analyzed the impact of asserts on debugging time. Our results seem to be quite consistent with debugging practice:

• ASSERT s can reduce debugging time dramatically (making it several times less)
• debugging-wise, there are ‘high-quality asserts’ and ‘not-so-high-quality asserts’
• purely empirical suggestions for ‘high-quality asserts’ were given in the ‘Quality of ASSERTs’ section
• the time for debugging ‘the last bug’ is significantly higher than the time for debugging the first one.

In addition, it should be noted that the impact of ASSERT s on the program is not limited to a reduction in debugging time. As such effects are well beyond the scope of this paper, we’ll just mention a few of them very briefly. On the negative side: depending on the programming language (and especially for the languages where an ASSERT is a mere function/macro, such as C/C++) it may be possible to write an ASSERT which changes the state of the program (see also Assumption #8 above). On the positive side, ASSERT s can be used to create documentation of the program, where such documentation (unlike, say, comments) cannot become out of date easily.

Overall, ‘No Bugs’ highly recommends the using of ASSERT s, though feels that creating any kind of metrics such as ‘number of ASSERT s per 1000 lines of code’, as a result of Goodhart’s Law [ Goodhart ], will become as useless as ‘number of comments per 1000 lines of code’. As ASSERT(1==1) is as useless as it gets, it is certainly not about sheer numbers, so it is important to use high-quality ASSERT s. This still seems to be an art rather than science, though a few hints for ‘high-quality ASSERT s’ were provided above, and most likely there are many more other such hints in existence.

References

[Goodhart] http://en.wikipedia.org/wiki/Goodhart%27s_law

[Loganberry04] David ‘Loganberry’, Frithaes! – an Introduction to Colloquial Lapine!, http://bitsnbobstones.watershipdown.org/lapine/overview.html

[Ignatchenko13] ‘A Model for Debug Complexity’, Sergey Ignatchenko and Dmytro Ivanchykhin, Overload 114, April 2013

[WikiAssertion] http://en.wikipedia.org/wiki/Assertion_(software_development)#Assertions_in_design_by_contract : Assertions can function as a form of documentation: they can describe the state the code expects to find before it runs (its preconditions), and the state the code expects to result in when it is finished running (postconditions); they can also specify invariants of a class.
