Comparison operators can get complicated. Barry Revzin explores how the new operator <=> helps.
In November 2017, the C++ Standards Committee added
operator<=>
, known as the spaceship operator [
P0515
], to the working draft for what will eventually become C++20. This is an exciting new language feature for two reasons: it allows you to write
one
function to do all your comparisons where you used to have to write
six
, and it also allows you to write
zero
functions – just declare the operator as defaulted and the compiler will do all the work for you! Exciting times.
The paper itself presents many examples of how to implement the spaceship operator in various situations, but it left me with an unanswered question about a particular case – so I set out trying to figure out. This post is about the journey of how to implement
operator<=>
for
optional<T>
. First, thanks to John Shaw for helping work through all the issues with me. And second, the resulting solution may not be correct. After all, I don’t even have a compiler to test it on. So if you think it’s wrong, please let me know (and please post the correct answer in this selfanswered StackOverflow question [
StackOverflow
]).
First, the specs.
optional<T>
has three categories of comparisons, all conditionally present based on the facilities of the relevant types:

optional<T>
compares tooptional<U>
, where valid (6 functions).
optional<T>
compares toU
, where valid (12 functions). I’m sceptical of this particular usecase, but this post is all about implementing the spec.
optional<T>
compares tonullopt_t
(12 functions). This case is trivial to implement, since several of the operations are simply constants (e.g.operator>=(optional<T>, nullopt_t)
istrue
). But, that’s still 12 trivialtoimplement functions.
In all cases, the semantics are that a disengaged optional is less than any value, but all disengaged values are equal. The goal is to take advantage of the new facilities that the spaceship operator provides us and reduce the current load of 30 functions to just 3.
We’ll start with the
optional
on
optional
comparison. There are four cases to consider: both on, left on only, right on only, and both off. That leads us to our first approach (Listing 1).
template <typename T> class optional { public: // from here on out, assuming that heading // exists ... template <typename U> constexpr auto operator<=>( optional<U> const& rhs) const > decltype(**this <=> *rhs) { using R = decltype(**this <=> *rhs); if (has_value() && rhs.has_value()) { return **this <=> *rhs; } else if (has_value()) { return R::greater; } else if (rhs.has_value()) { return R::less; } else { return R::equal; } } };
Listing 1
The spaceship operator returns one of five different comparison categories:

strong_ordering

weak_ordering

partial_ordering

strong_equality

weak_equality

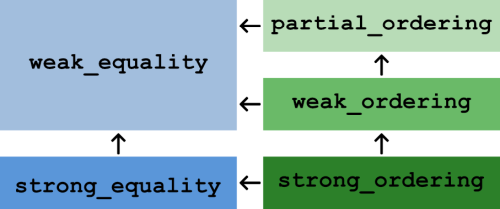

Each of these categories has defined named numeric values. In the paper, the categories are presented in a way that indicates the direction in which they implicitly convert in a really nice way, so I’m just going to copy that image as Figure 1 (all credit to Herb Sutter).
Figure 1
Likewise, their table of values is shown in Table 1 below.


Table 1
Just carefully perusing this table, it’s obvious that our first implementation is totally wrong.
strong_ordering
has numeric values for less, equal, and greater… but the rest don’t! In fact, there is no single name that is common to all 5. By implementing it the way we did, we’ve reduced ourselves to only supporting strong orderings.
So if we can’t actually name the numeric values, what do we do? How can we possibly do the right thing?
Here, we can take advantage of a really important aspect of the comparison categories: convertibility. Each type is convertible to all of its less strict versions, and each value is convertible to its less strict equivalents.
strong_ordering::greater
can become:

weak_ordering::greater
or
partial_ordering::greater
or
strong_equality::nonequal
or
weak_equality::nonequivalent
And the way we can take advantage of this is to realize that we don’t really have
four
cases, we have two: both on, and not that. Once we’re in the ‘not’ case, we don’t care about the values anymore, we only care about the bools. And we already have a way to do a proper 3way comparison:
<=>
! (See Listing 2.)
template <typename U> constexpr auto operator<=>(optional<U> const& rhs) const > decltype(**this <=> *rhs) { if (has_value() && rhs.has_value()) { return **this <=> *rhs; } else { return has_value() <=> rhs.has_value(); } }
Listing 2
The shapeship operator for
bool
s gives us a
strong_ordering
, which is convertible to everything. So that part is guaranteed to work and do the right thing (I encourage you to work through the cases and verify that this is indeed the case).
But this still isn’t quite right. The problem is actually
<=>
(thanks, Captain Obvious?). You see, while
a < b
is allowed to fallback to
a <=> b < 0
, the reverse is not true.
a <=> b
is not allowed to call anything else (besides
b <=> a
). It either works, or it fails. By using the spaceship operator directly on our values, we’re actually reducing ourselves to only those modern types that support 3way comparison. Which, so far, is no userdefined types. Moreover,
<=>
doesn’t support mixedinteger comparisons, so even for those types that come with builtin spaceship support (that’s a fantastic phrase), we would effectively disallow comparing an
optional<int>
to an
optional<long>
. So, this operator in this particular context isn’t very useful.
So what are we to do? Reimplement 3way comparison ourselves manually? Nope, that’s what the
library
is for! Along with language support for the spaceship operator, C++20 will also come with several handy library functions and the relevant one for us is
std::compare_3way()
. This one will do the fallback: it prefers
<=>
, but if not will try the normal operators and is smart enough to know whether to return
strong_ordering
or
strong_equality
.
And
it’s SFINAEfriendly. Which means for our purposes, we can just dropin replace our tooconstrained version with it (see Listing 3).
template <typename U> constexpr auto operator<=>(optional<U> const& rhs) const > decltype(compare_3way(**this, *rhs)) { if (has_value() && rhs.has_value()) { return compare_3way(**this, *rhs); } else { return has_value() <=> rhs.has_value(); } }
Listing 3
And I think we’re done.
Now that we’ve figured out how to do the optionalvsoptional comparison, comparing against a value is straightforward. We follow the same pattern for the valuecomparison case, we just need to know what to return in the case where the optional is disengaged. Semantically, we need to indicate that the optional is less than the value. Again, we can just take advantage that all the comparison category conversions just Do The Right Thing and use
strong_ordering::less
(see Listing 4).
template <typename U> constexpr auto operator<=>(U const& rhs) const > decltype(compare_3way(**this, rhs)) { if (has_value()) { return compare_3way(**this, rhs); } else { return strong_ordering::less; } }
Listing 4
We just replaced 12 functions (that, while simple, are certainly nontrivial to get right) with 10 lines of code . Mic drop.
All that’s left is the
nullopt_t
comparison, which is just a simple comparison (Listing 5).
constexpr strong_ordering operator<=>(nullopt_t ) const { return has_value() ? strong_ordering::greater : strong_ordering::equal; }
Listing 5
Putting it all together, and Listing 6 is what we end up with to cover all 30
std::optional<T>
comparisons.
template <typename T> class optional { public: // ... template <typename U> constexpr auto operator<=>(optional<U> const& rhs) const > decltype(compare_3way(**this, *rhs)) { if (has_value() && rhs.has_value()) { return compare_3way(**this, *rhs); } else { return has_value() <=> rhs.has_value(); } } template <typename U> constexpr auto operator<=>(U const& rhs) const > decltype(compare_3way(**this, rhs)) { if (has_value()) { return compare_3way(**this, rhs); } else { return strong_ordering::less; } } constexpr strong_ordering operator<=>(nullopt_t ) const { return has_value() ? strong_ordering::greater : strong_ordering::equal; } };
Listing 6
Not bad for 25 lines of code?
Let me just reiterate that I’m not sure if this is the right way to implement these operators. But that’s the answer [ StackOverflow ] I’m sticking with until somebody tells me I’m wrong (which, if I am, please do! We’re all here to learn).
Needless to say, I’m very much looking forward to throwing out all my other comparison operators. Just… gotta wait a few more years.
Bonus level
Here’s what I think a comparison operator would look like for
std::expected<T, E>
. The semantics here are that the values and errors compare against each other, if they’re the same. If they’re different types, the value is considered greater than the error. Although, for the purposes of this exercise, the specific semantics are less important than the fact that we get consistent semantics. And I think the right way to implement consistent semantics is as shown in Listing 7.
template <typename T, typename E> class expected { public: // ... template <typename T2, typename E2> constexpr auto operator<=>(expected<T2, E2> const& rhs) const > common_comparison_category_t< decltype(compare_3way(value(), rhs.value())), decltype(compare_3way(error(), rhs.error()))> { if (auto cmp = has_value() <=> rhs.has_value(); cmp != 0) { return cmp; } if (has_value()) { return compare_3way(value(), rhs.value()); } else { return compare_3way(error(), rhs.error()); } } };
Listing 7
common_comparison_category
is a library metafunction that gives you the lowest common denominator between multiple comparison categories (which hopefully is SFINAEfriendly, but I’m not sure). The first if check handles the case where the valueness differs between the two
expected
objects. Once we get that out of the way, we know we’re in a situation where either both are values (so, compare the values) or both are errors (so, compare the errors). Just thinking of how much code you have to write today to accomplish the same thing makes me sweat…
References
[P0515] ‘Consistent comparison’ (2017) http://www.openstd.org/jtc1/sc22/wg21/docs/papers/2017/p0515r3.pdf
[StackOverflow] ‘Implementing operator<=> for optional<T>’ https://stackoverflow.com/questions/47315539/implementingoperatorforoptionalt
